Replacement Parts & Tooling

Foundation Drilling Tools & Auger Equipment from Jeffrey Machine

RPI Construction Equipment partners with Jeffrey Machine to supply high-quality parts and tooling for drilling and foundation equipment.

Durable, Dependable, Job-Ready

Foundation Drilling Tools You Can Trust

RPI Construction Equipment is your trusted source for foundation drilling tools and replacement parts that keep your equipment performing at its best. With a focus on reliability and precision, RPI offers a complete selection of equipment for drilling foundation systems, from auger drilling tools to specialized components for deep foundation projects.

Through its partnership with Jeffrey Machine, RPI connects contractors with some of the most durable and precisely engineered tooling in the industry. You will find a wide variety of foundation augers for sale, including rock augers, core barrels, and cleanout buckets, along with Kelly bar auger attachments, Kelly stubs, and shim boxes designed for tough drilling conditions.

RPI also supplies a complete range of KDK Tools, including the KDK tool shim and KDK tool adapter, as well as Kelly stub adapters and Kelly stub shims. Each part is crafted for compatibility, strength, and long-term performance in both foundation and piling applications. These components help maintain proper torque transfer and alignment, keeping your drilling system stable and efficient.

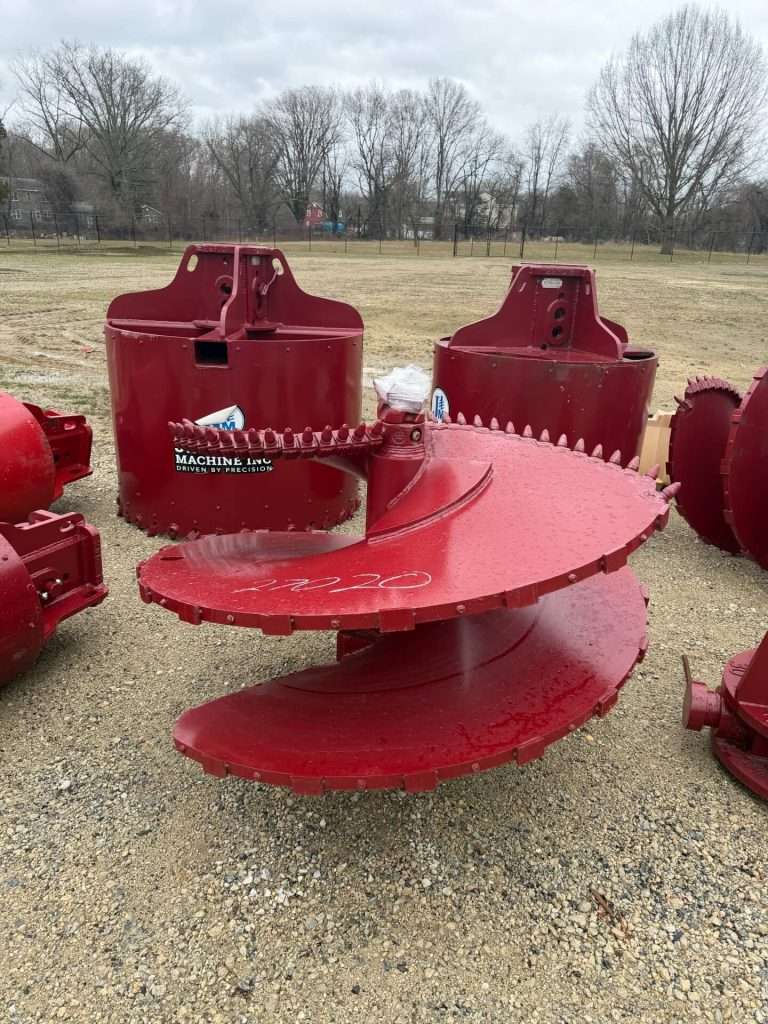

Foundation Drilling Tools from Jeffrey Machine​

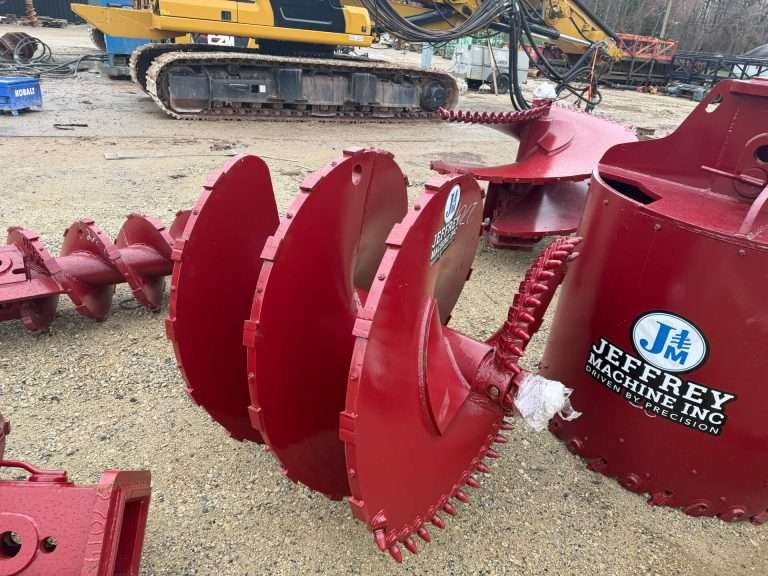

Jeffrey Machine​ Equipment

Beyond quality products, RPI backs every purchase with expert service. The company’s certified technicians provide both on-site and in-shop support for all major brands of drilling and piling equipment. Whether you need a Kelly bar replacement, a new tooling setup, or preventative maintenance, RPI delivers fast and dependable results.

From replacement parts to advanced tooling systems, RPI Construction Equipment combines technical expertise, responsive support, and high-quality products to keep your foundation equipment job-ready and performing with precision.

Equipments

Available Auger Drill Tooling Rentals

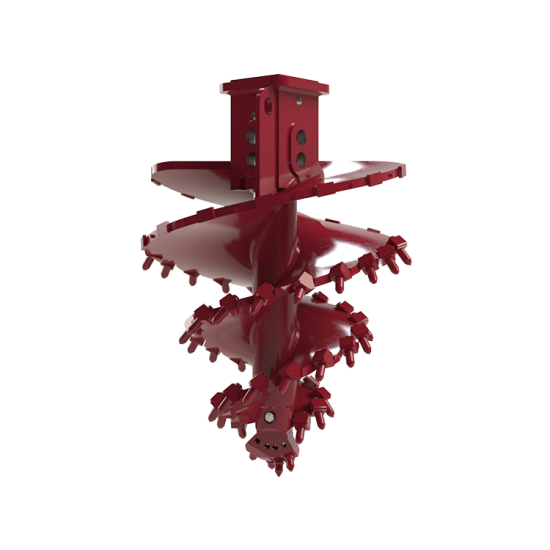

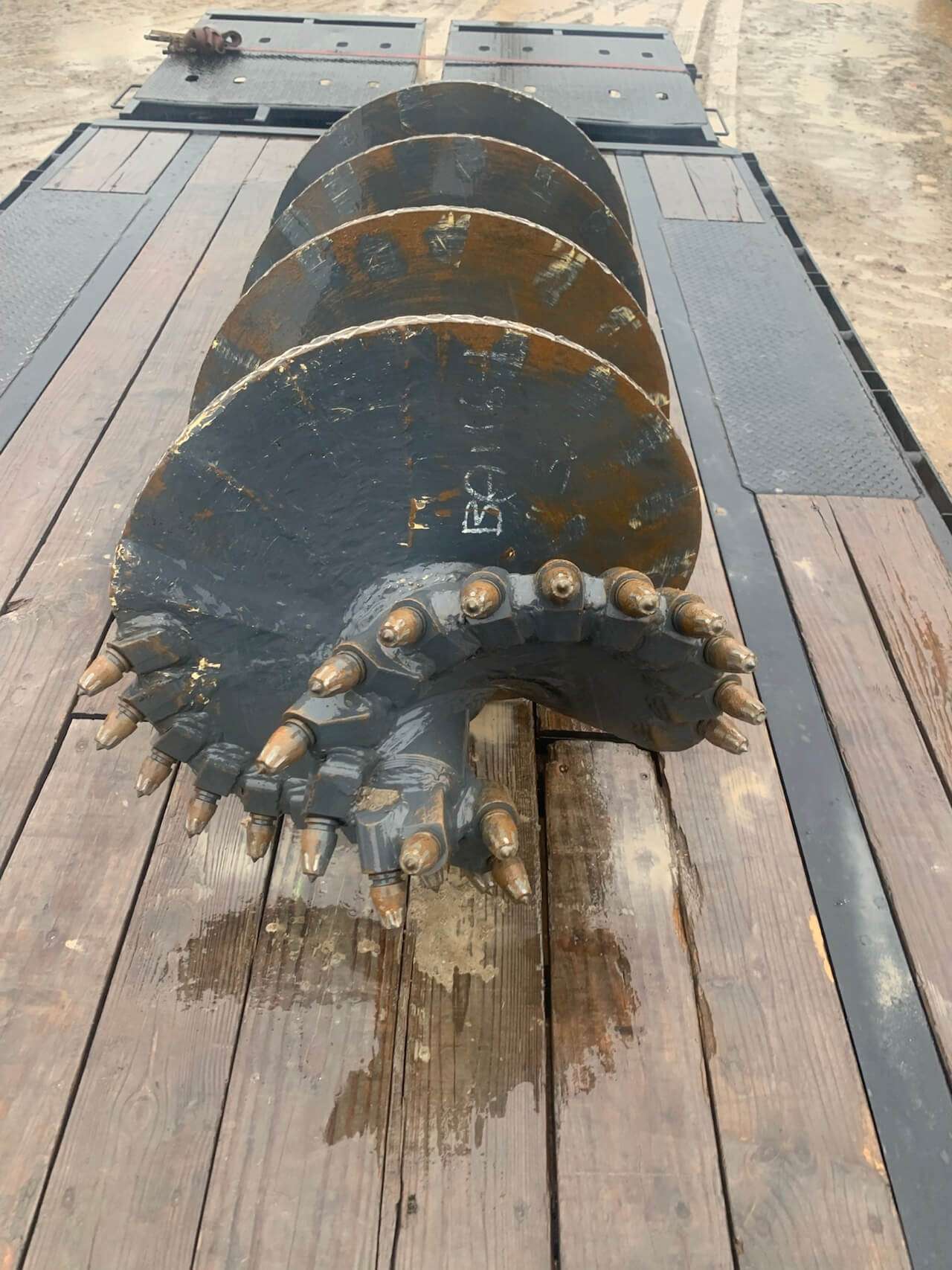

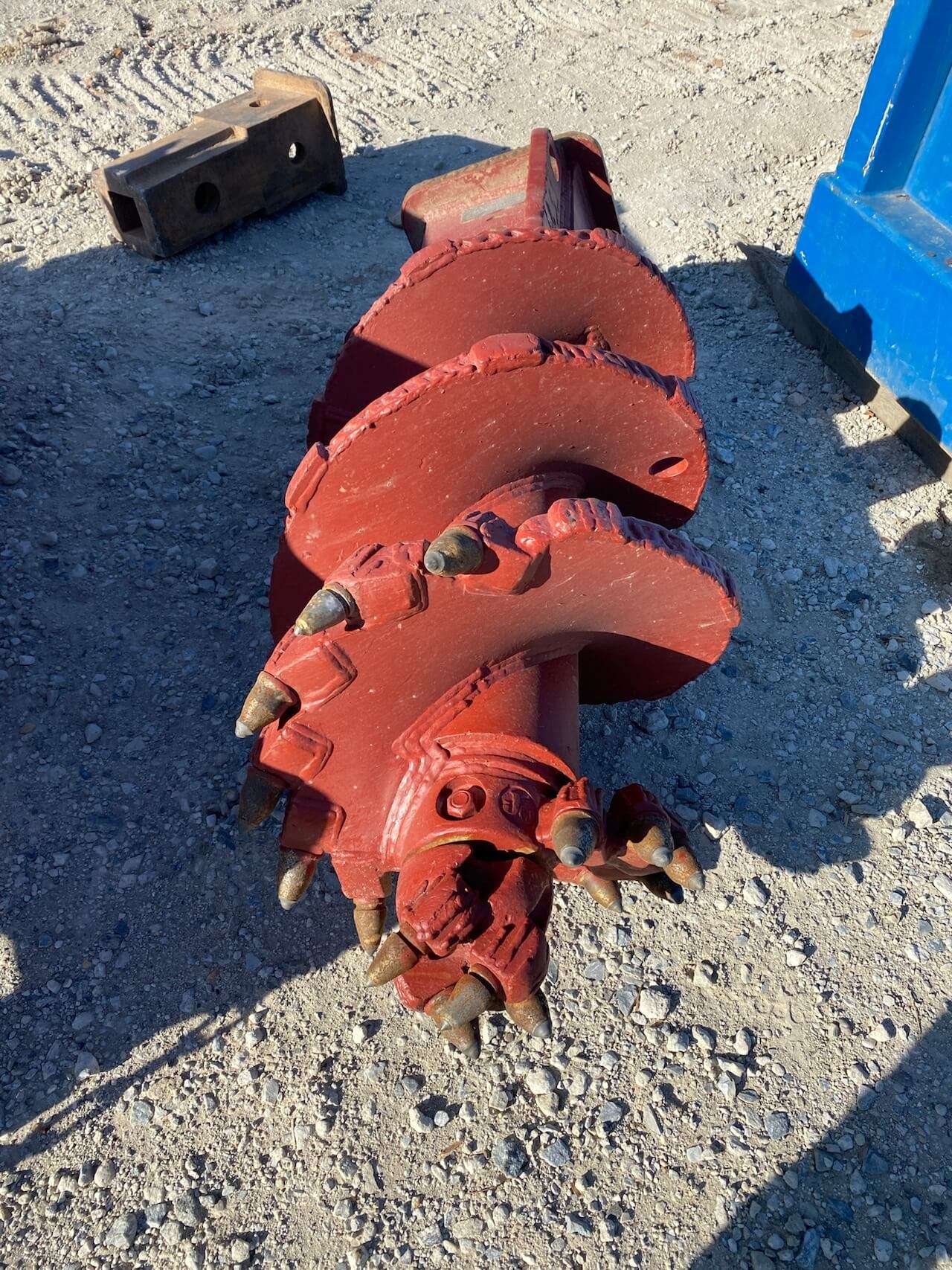

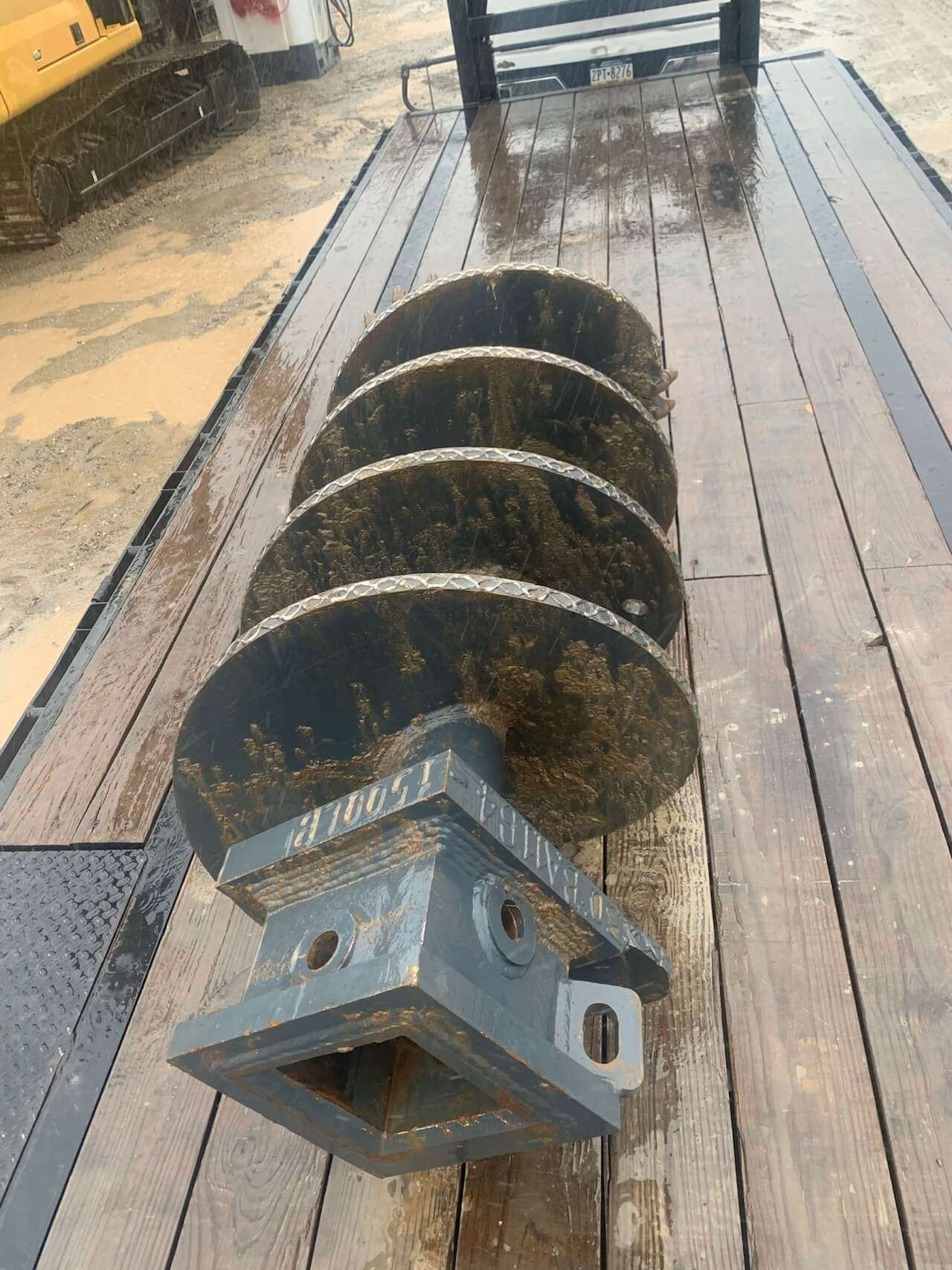

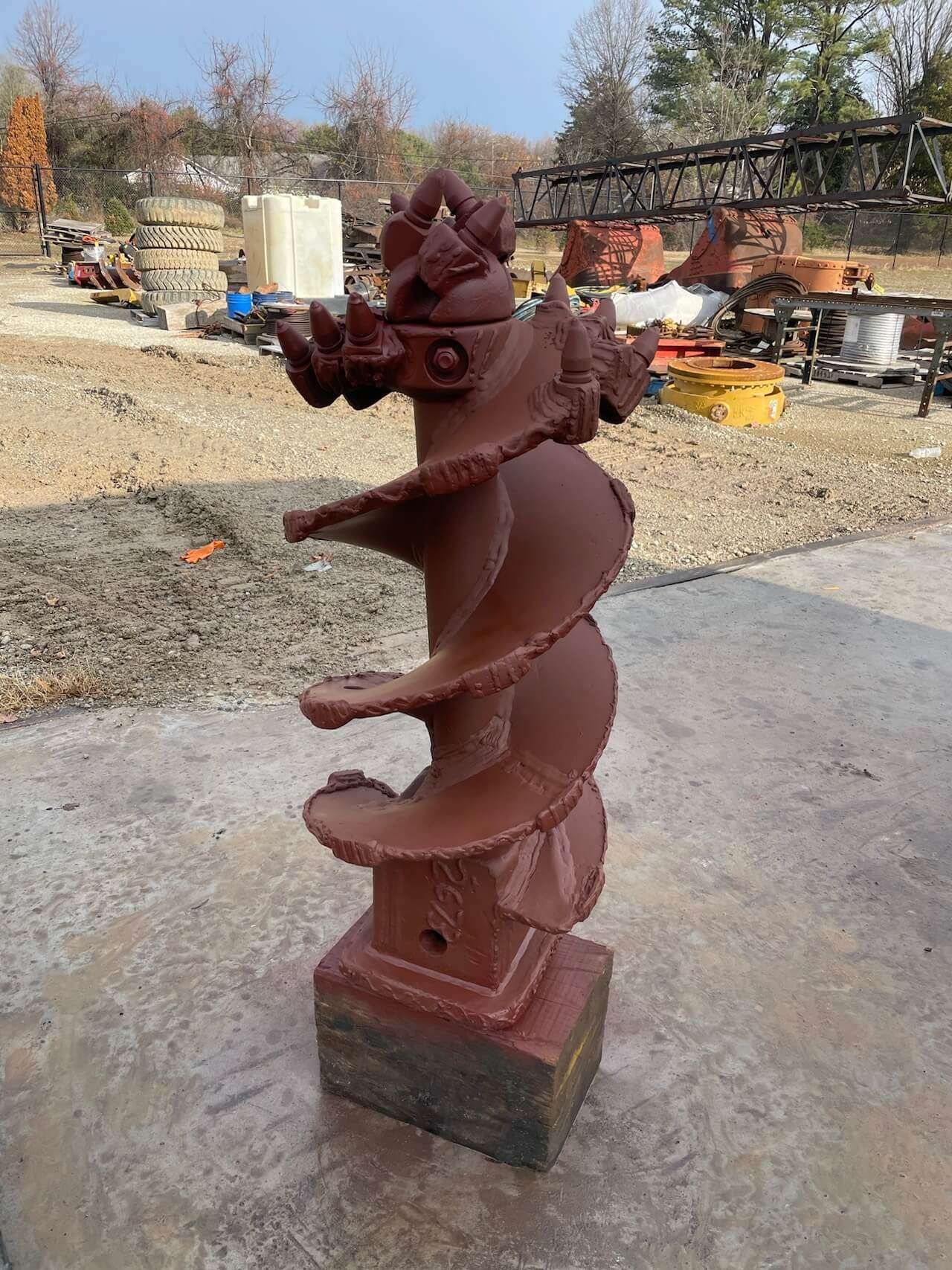

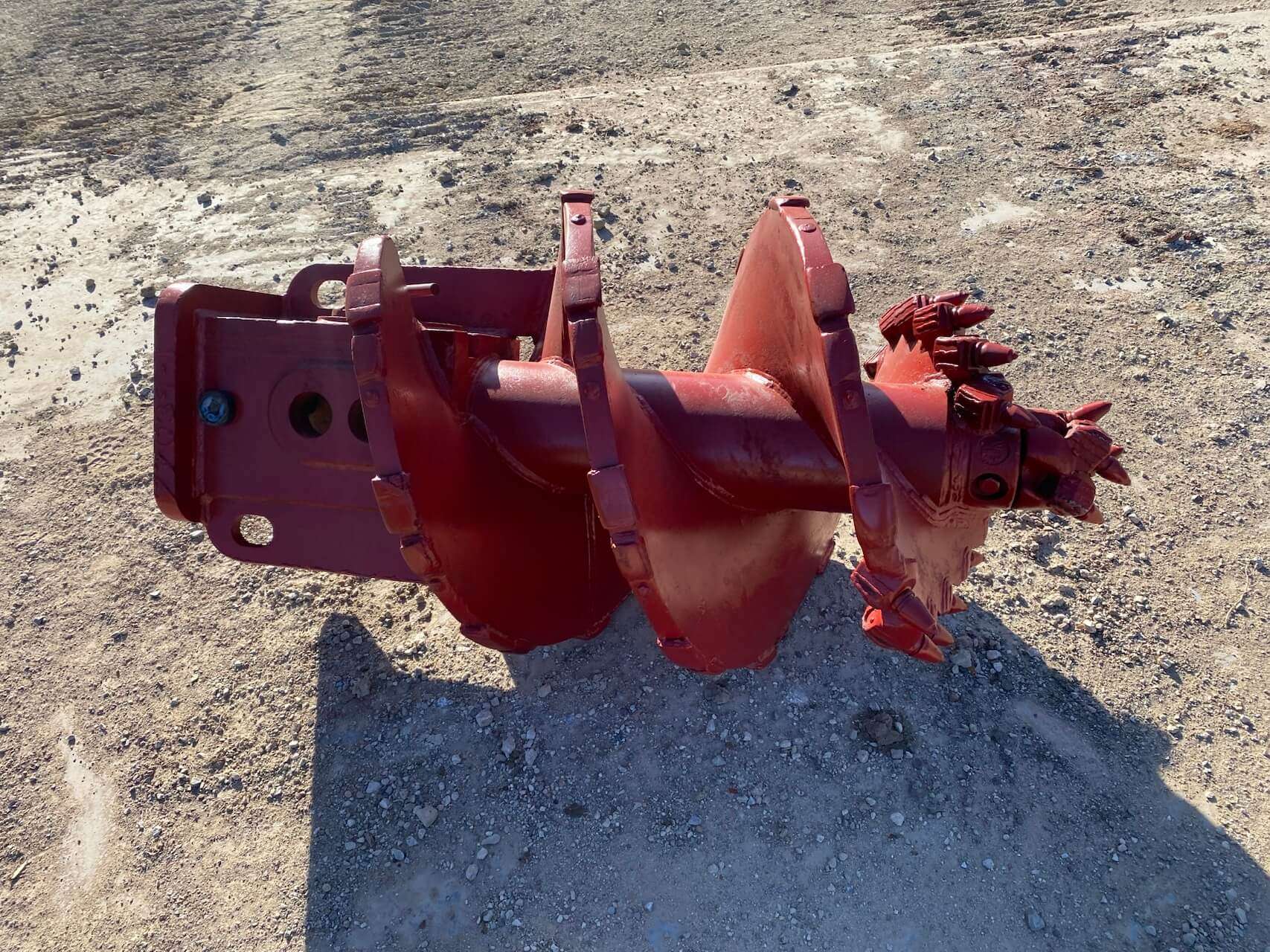

Rock Augers

• Sizes Available: 20" and 24" through 120" in 6” increments
• Kelly Box: 130mm or 200mm
• Flight: 1" to 2" thickness
• Wear Protection: Wear pads

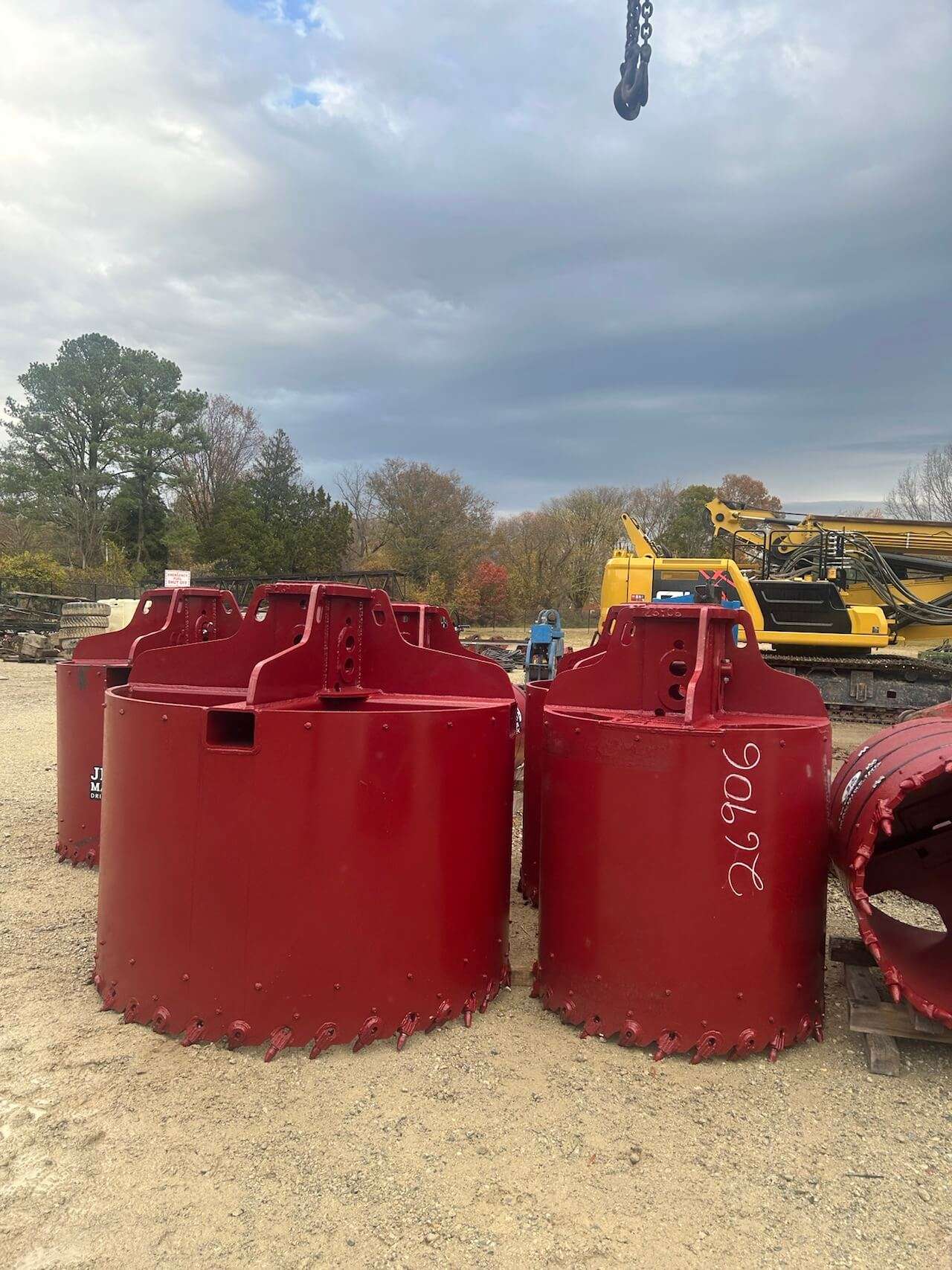

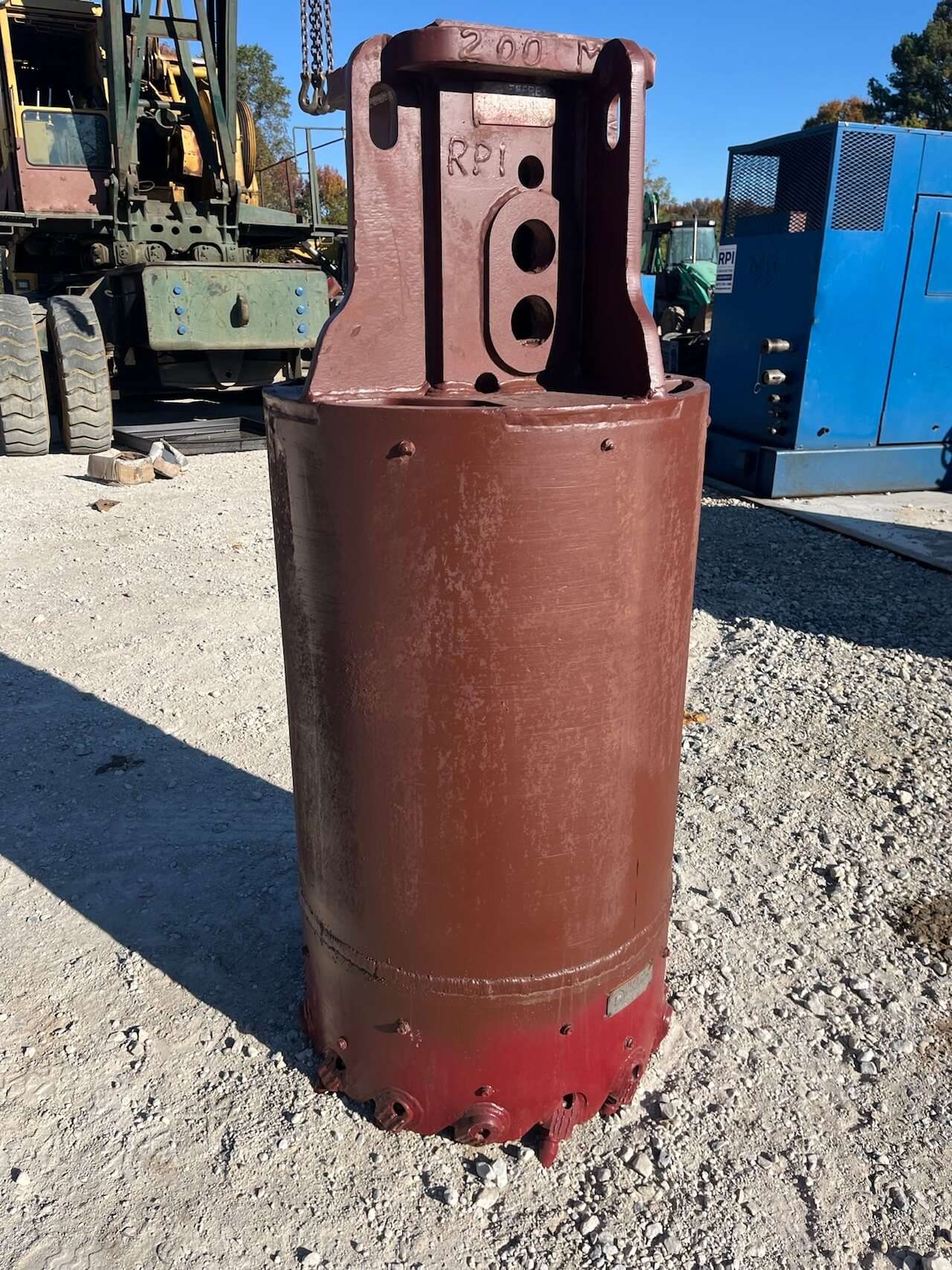

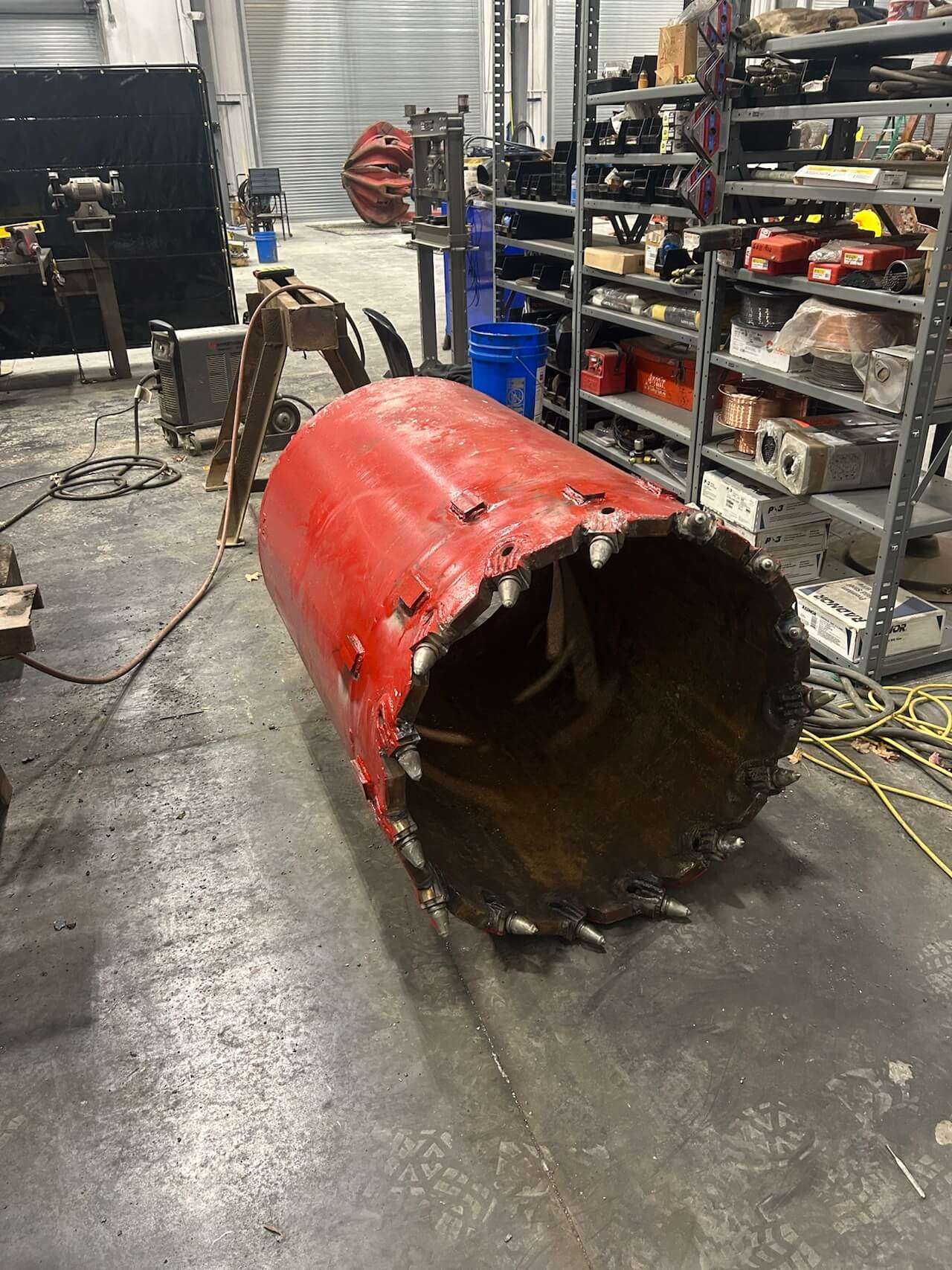

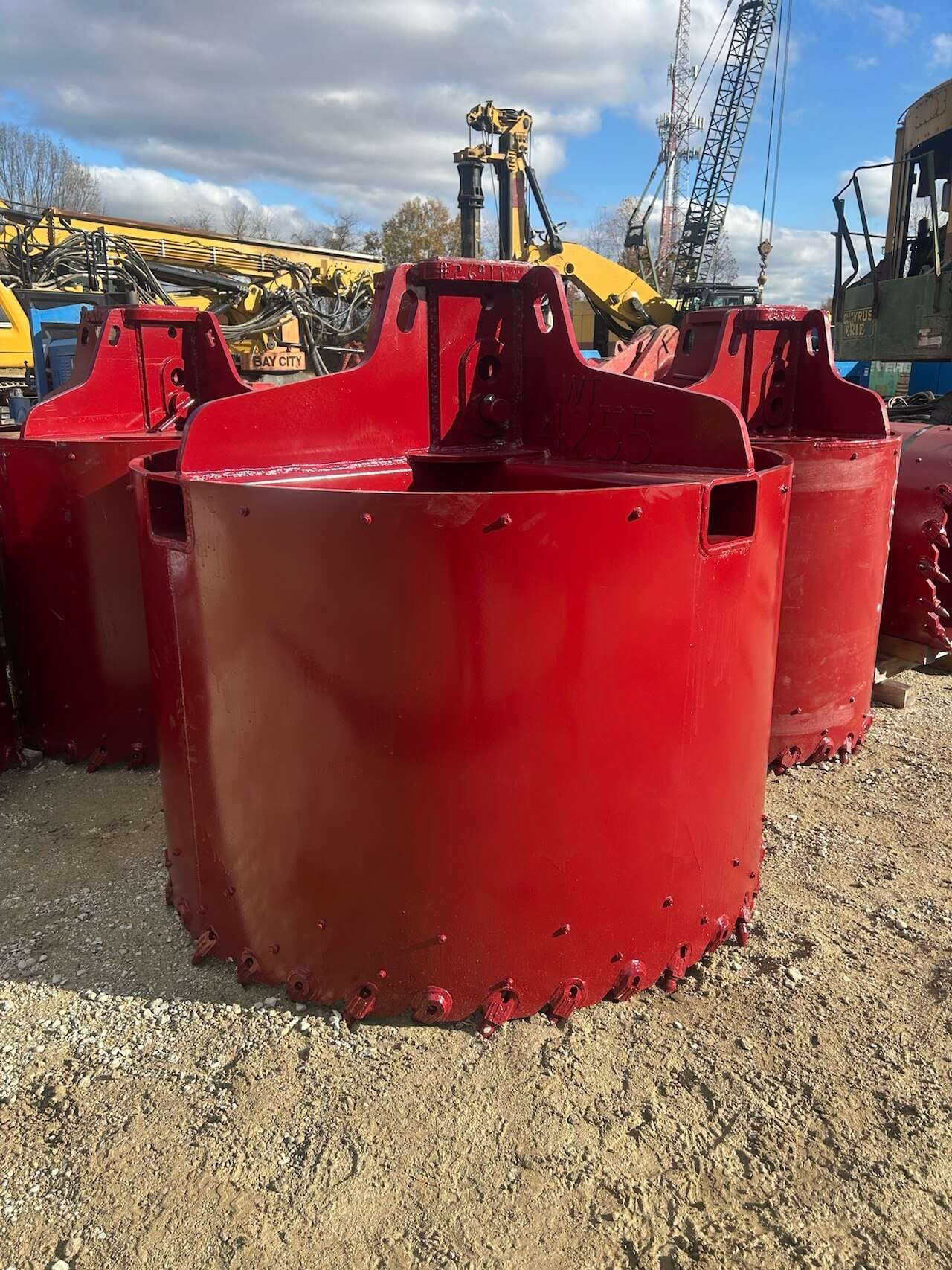

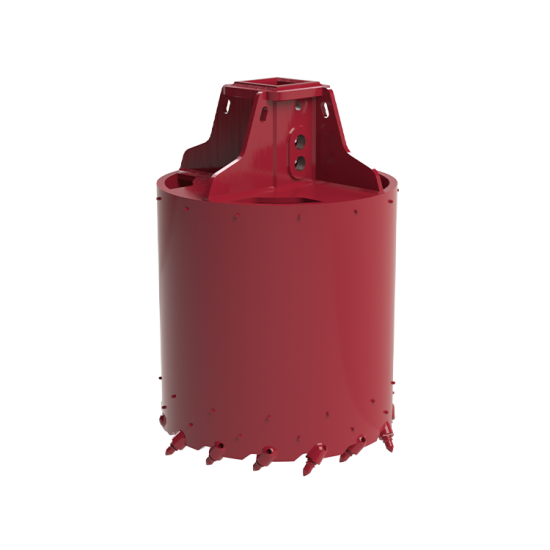

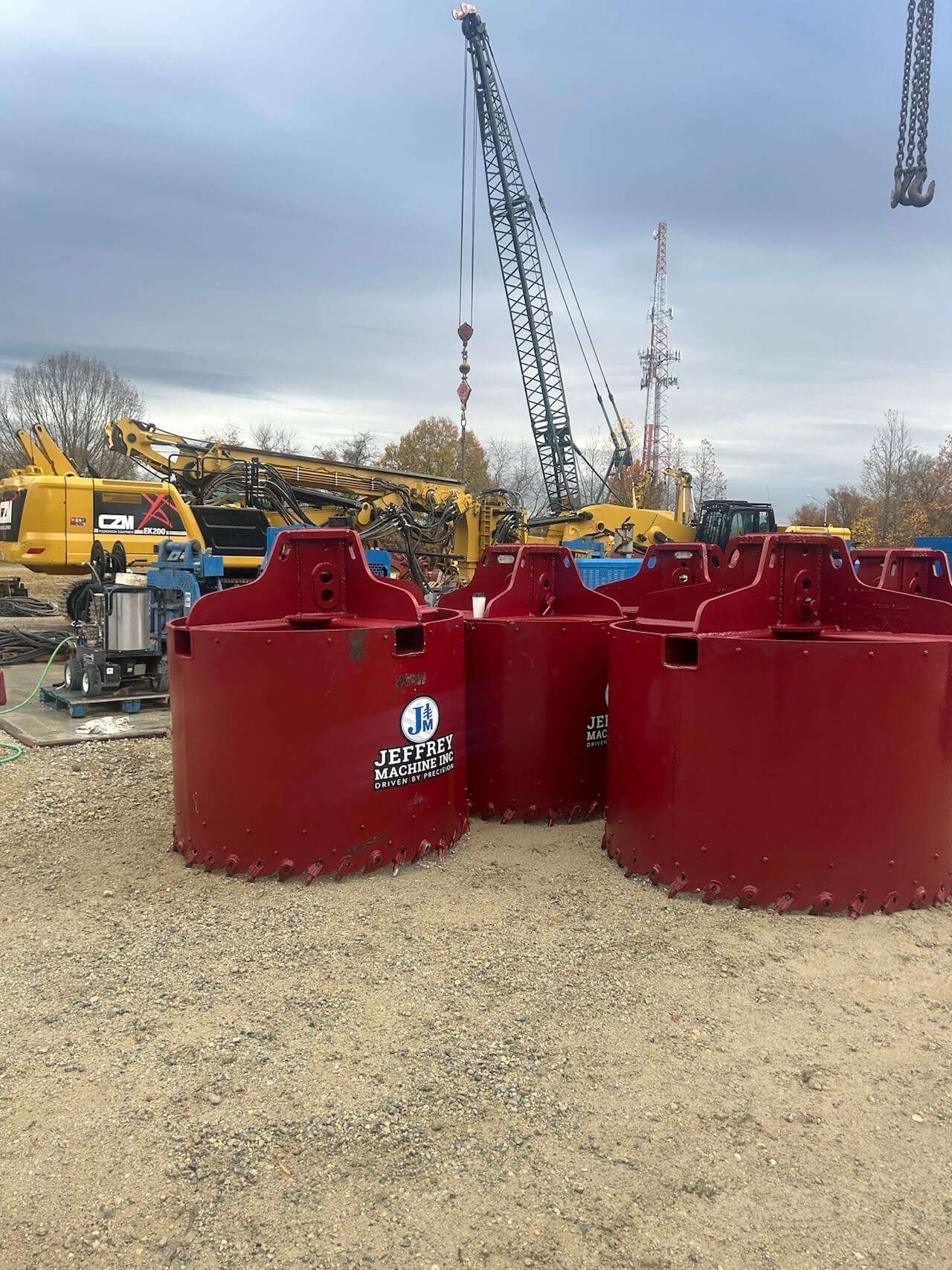

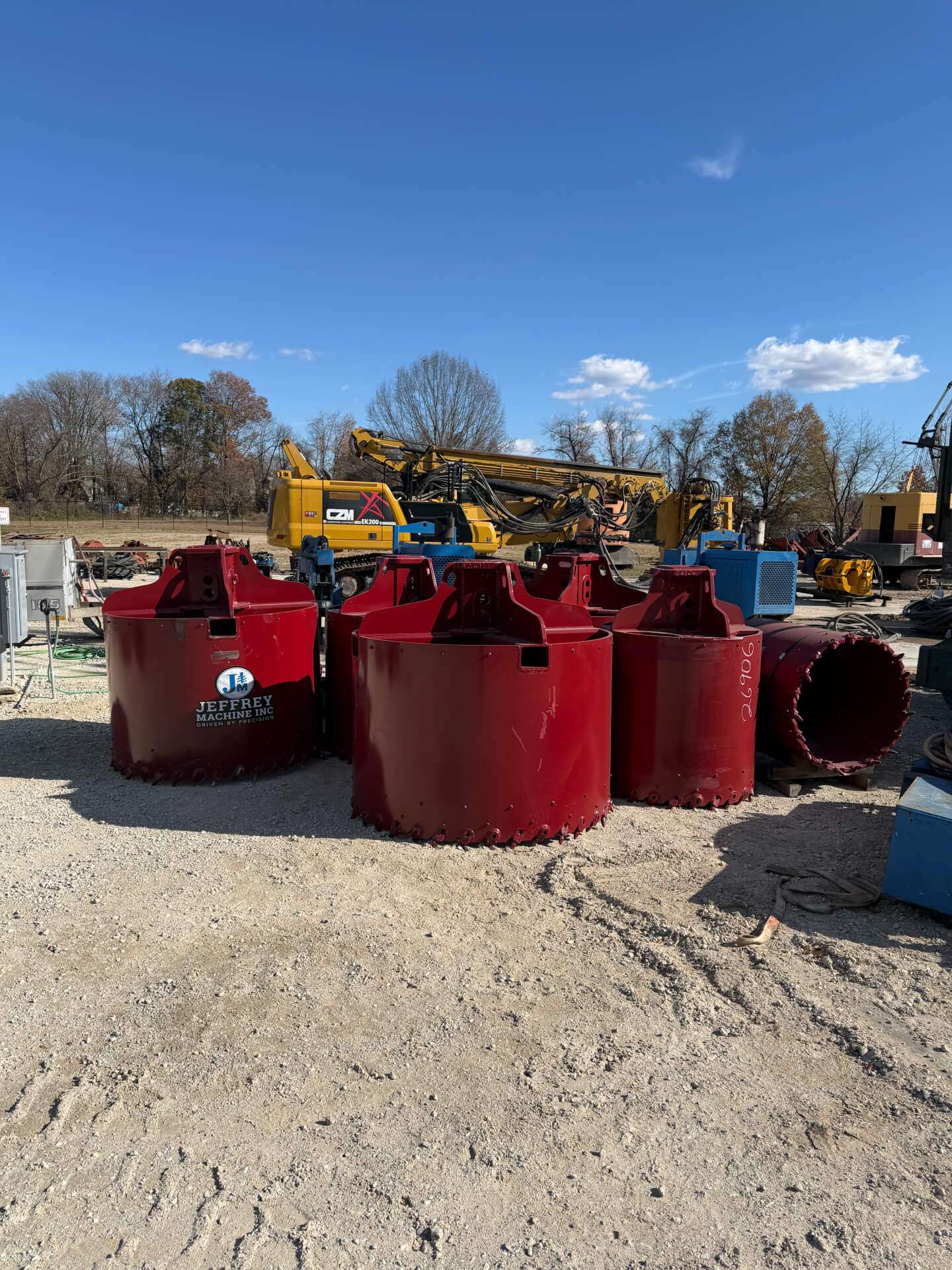

Core Barrels

• Sizes Available: 20" and 24" through 120" in 6” increments
• Kelly Box: 130mm or 200mm
• Gussets: 1" thick standard
• Barrel: Up to 2" thick
• Layout Options: 3-tooth, 5-tooth, or 7-tooth

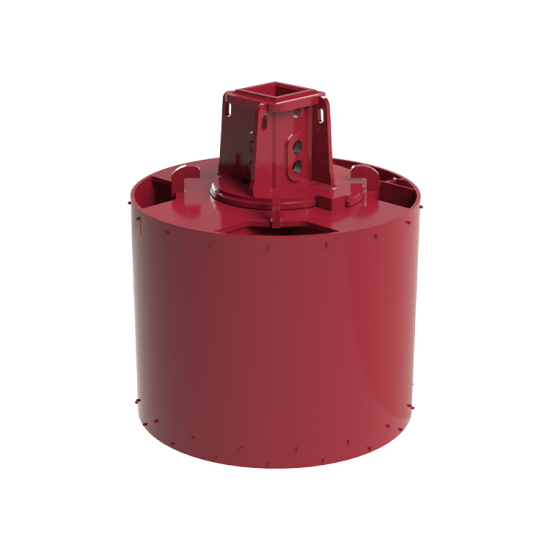

Open Top, Spin Bottom Clean Out Buckets

• Sizes Available at RPI: 22", 28", 34"
• Kelly Box: 130mm or 200mm
• Barrel: Up to 2" thick
• Top Plate: 1" thick with 1" gussets
• Wear Protection: Available upon request

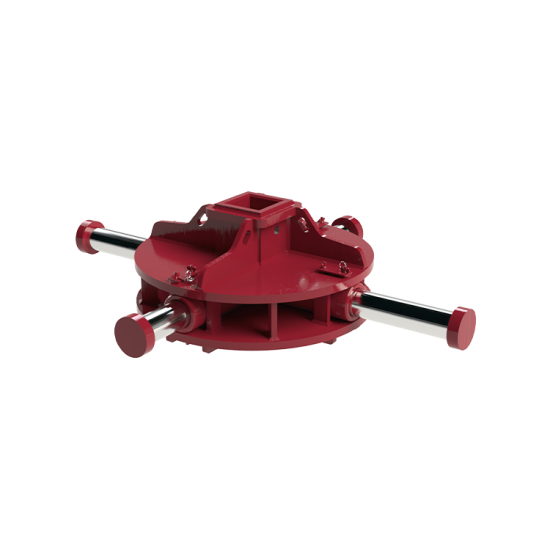

4-Way Casing Twister

• Adjustable Size: 28" to 42"
• Configuration: 4-way adjustable
• Arms: 5" OD solid arms

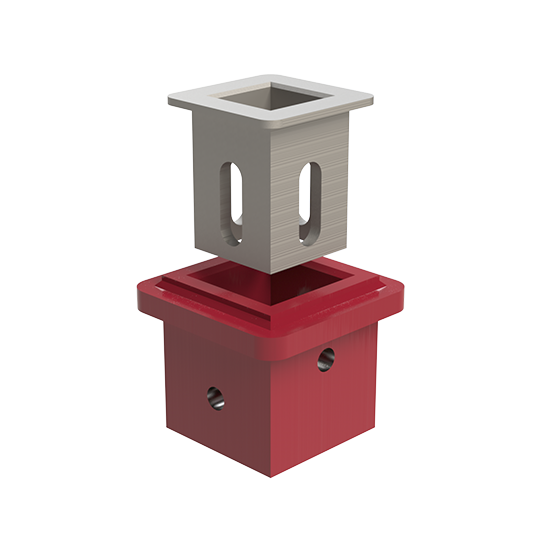

Shim Boxes

• Sizes Available: 200mm to 130mm and 200mm to 177mm
• Construction: Fabricated and CNC-machined
• Designed for: Jeffrey Machine drive boxes

Service & Repair Call Out

Need Equipment Service or Field Support?

RPI Construction Equipment provides comprehensive service and repair for drilling rigs, foundation equipment, and related components. From in-shop fabrication to on-site field service, our team is equipped to keep your operation running safely and efficiently.

Explore our full range of service capabilities and see how we support your equipment beyond parts and tooling.
